100W all in one solar led street light

Products Details

Features:

  1. Original design of all in one solar led street light.
  2. Powered by solar energy, eco-friendly and no electricity charges.
  3. DC12V power supply system, more safe than commercial electricity.
  4. All components including solar panel, batter packing and controller are entirely produced and test by our own workshop, which make quality control better.
  5. Choosing raw materials from major brand supplier, such as Philips chipset.
  6. Artistic appearance, easy installation.
  7. With detachable battery storeroom, easier to replace battery or controller. There is no need to disassemble the fixture.
  8. Warranty: 5years.
Specification:
Model NO.  LL-ASSL5-100W
LED Chipset  PHILIPS 5050
Chipset Q'ty  126PCS
Light Efficiency  130LM/W±10LM
Lumen  13000-15000LM
Color Temperature  2800K-6500K
CRI >70
LED Lifespan 50000H
Electrical characteristic Rated Power 100W
Solar Panel Power  18V/95W
Lithium Battery 11.1V/ 692.6WH
Charge Time 7 Hours with good sunshine.
Discharging Time 3-10 rainy days, 12hours per night. Or you can set a fixed lighting time.
Working Temparature  -25℃~+65℃
Switch Threshold 15LUX
Max sensing Distance ≦12M

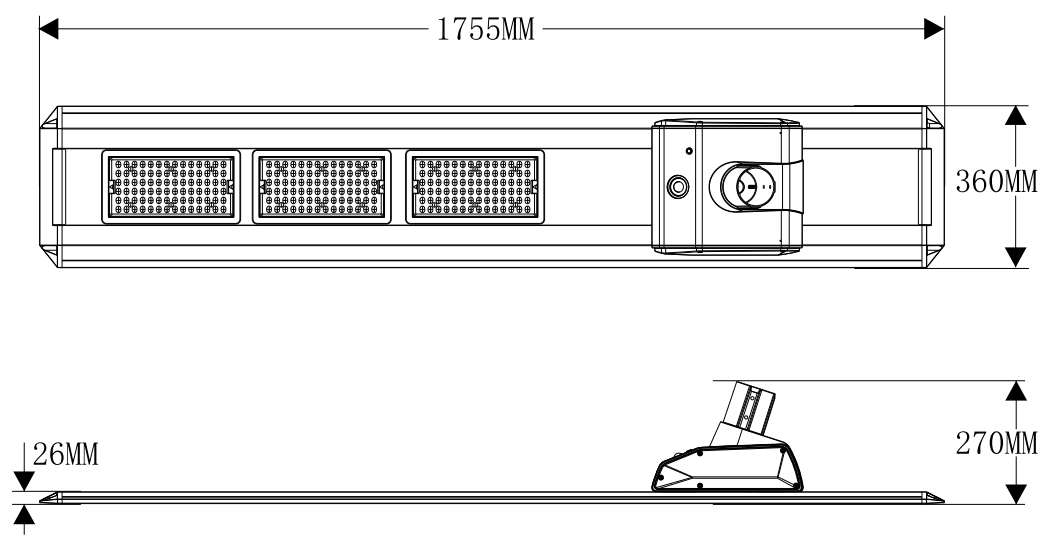

Mechanical Specification Light body size 1755*360*270mm
Net Weight 22.8 kg
Mounting Height 9-11M
Pole Installation Distance 27-33M
Packing Information Q'ty/carton 2 sets / carton
Carton Size 1835*435*400mm(2PCS)
Gross Weight 50kg
 Size: 100W

Unit: mm

Application: All in one solar led street light is used for Courtyard, Garden, Park, Street, Roadway, pathway, Parking Lot, Private road, Sidewalk, Public square, plaza, Campus, Farm & Ranch, Perimeter Security, Wildlife area, Remote Area, Military Base, and so on. 6W Solar Street Lighting application
