Description: LOWCLED 4F series LED street light has low power consumption, high luminous efficiency and long service life. Honeycomb heat dissipation design. Wrapped structure design of module lens and radiator, which can enhance structural strength and prevent light leakage. Avoid light pollution caused by stray light. The whole lamp is anti-glare. The hatchback design of the power supply case is convenient of backward power supply replacement and maintenance. Embedded with level gauge, which is convenient for construction and installation. No stroboscopic, no delay in starting and eliminating the drawbacks of traditional street lamps. Rocker arm is adjustable from 0º to 180º . Photosensitive mounting position. Perfect combination of wind energy. Fully realized high cost-effective LED advantages of energy-saving and environmental protection. Professional outdoor surface treatment of lamps. Adding metal powder, improving heat dissipation effect, grinding texture, meeting 48 hours salt spray test and 28 days continuous exposure of solar radiation lamp test. 50,000 hours lifetime Specification: | Model | LL-SL4F-200W |
| Power | 200W |
| Input Voltage | 100-240VAC |
| Frequency | 50/60Hz |
| Power Factor | ≥0.9 |
| Total Harmonic Distortion | ＜20% |
| Color Temperature | 3000-6500K |
| Luminous Flux | 22000lm |
| Luminous Efficacy | 110 lm/w |
| CRI | >70 |
| Raw material | Die-cast Aluminium + PC |
| Beam Angle | 60 ° / 90 ° / 80*150 °/ 80*140偏 30 ° / 80*150偏 60° |
| Light Transmittance | 0.92 |
| IP Level | IP65 |
| Operating Temperature | -40~50℃ |
| Storage Temperature | -40~75℃ |
| Storage Humidity | 20% ~ 95% |
| Housing Color | Black/Gray |

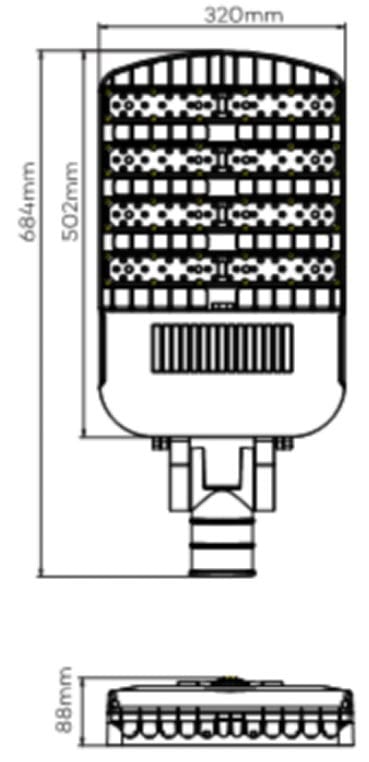

| Product Dimension | 684*320*110mm |
| Net Weight | 6.9 kg |
| Gross Weight | 8.8 kg |
| Carton Size | 741*385*155mm/1PCS |
| Lifespan | 50,000h |
Features: • With Build-in constant current Driver for long life. • Integral die-casting design, integral structure waterproof IP65. • Honeycomb heat dissipation design. • Wrapped structure design of module lens and radiator, which can enhance structural strength and prevent light leakage. • Avoid light pollution caused by stray light Housing & Finish: • Die-casting aluminum heat sink • UV resistant high quality lens • aluminum color • RAL & custom colors available
Electrical:
• 100-240VAC, 50/60Hz • System power factor>90% • MEANWELL LED driverOptics
• Beam Angel: Optical angle beam angles 60°, 90°, 80* 150°, 80 *140 ,°80 *150°and other optional beam angles for choice. • The whole lamp is anti-glare.
Compliance
• LM-79 & LM-80 test reports • CE & RoHS available
Ratings
• IP65 waterproof • Operating Temperature Rated at -40°C to 50°C • Storage Temperature Rated at -40°C to 75°C
Warranty
• 5-year limited system warranty * Please refer to LOWCLED warranty term for complete information.
Meanwell driver ● We use MEANWELL driver as one of most important components. ● Good quality and durable. ● IP65 waterproof. Can be used in wet location.

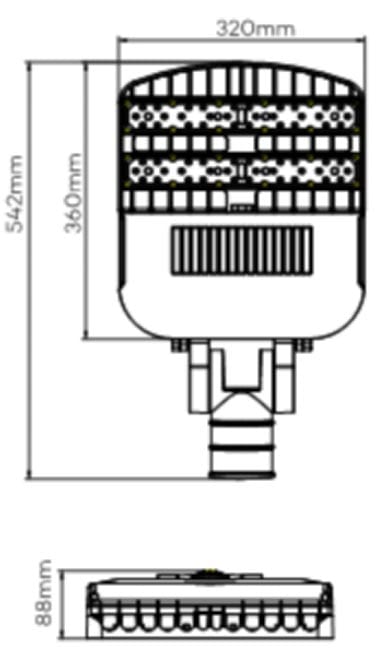

Structure ● The hatchback design of the power supply case is convenient of backward power supply replacement and maintenance. ● Street lamp driving power supply chamber is IP67. Power supply and street lamp shell fitted design, which increase the heat dissipation area of power supply and extend lifespan of power supply.Size:
Photosensitive mounting position ● Photosensitive mounting position is special for the place of motion sensor or PIR sensorFeatures: ● Rocker arm is adjustable from 0º to 180º . ● Embedded with level gauge, which is convenient for construction and installation.
