Features:
- Original design of all in one solar led street light.
- Powered by solar energy, eco-friendly and no electricity charges.
- DC12V power supply system, more safe than commercial electricity.
- All components including solar panel, batter packing and controller are entirely produced and test by our own workshop, which make quality control better.
- Choosing raw materials from major brand supplier, such as Philips chipset.
- Artistic appearance, easy installation.
- With detachable battery storeroom, easier to replace battery or controller. There is no need to disassemble the fixture.
- Warranty: 5years.
| Model NO. | LL-ASSL5-30W | |
| LED | Chipset | PHILIPS 5050 |
| Chipset Q'ty | 42PCS | |
| Light Efficiency | 130LM/W±10LM | |
| Lumen | 3500-5000LM | |
| Color Temperature | 2800K-6500K | |
| CRI | >70 | |
| LED Lifespan | 50000H | |
| Electrical characteristic | Rated Power | 30W |
| Solar Panel Power | 18V45W | |
| Lithium Battery | 11.1V /259.7WH | |
| Charge Time | 7 Hours with good sunshine. | |
| Discharging Time | 3-10 rainy days, 12hours per night. Or you can set a fixed lighting time. | |
| Working Temparature | -25℃~+65℃ | |
| Switch Threshold | 15LUX | |
| Max sensing Distance | ≦12M | |
| Mechanical Specification | Light body size | 925*360*270mm |
| Net Weight | 13.2 kg | |
| Mounting Height | 4-6 M | |
| Pole Installation Distance | 12-18 M | |
| Packing Information | Q'ty/carton | 2 sets / carton |
| Carton Size | 1005*435*400mm(2PCS) | |
| Gross Weight | 30.8 kg | |

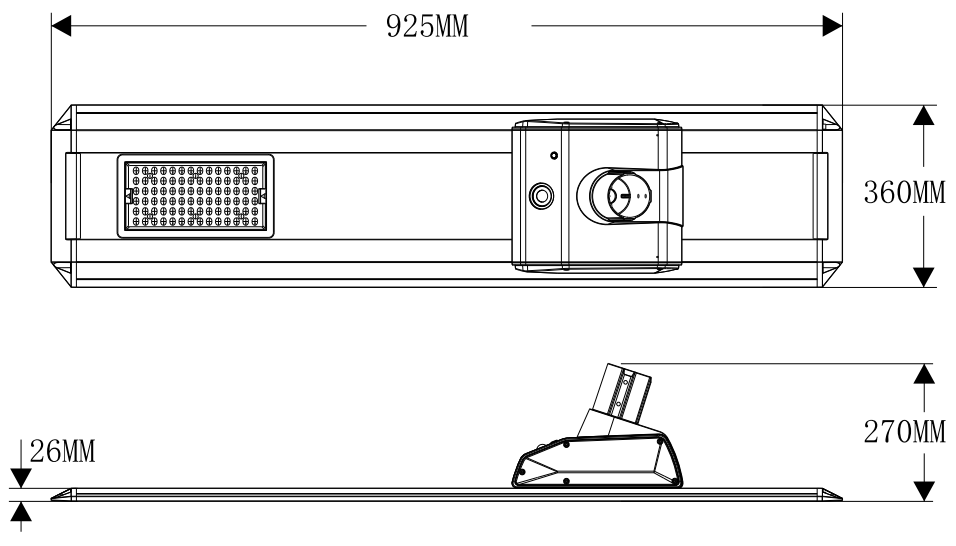

Unit: mm
Application: All in one solar led street light is used for Courtyard, Garden, Park, Street, Roadway, pathway, Parking Lot, Private road, Sidewalk, Public square, plaza, Campus, Farm & Ranch, Perimeter Security, Wildlife area, Remote Area, Military Base, and so on.
