Features:
The integrated solar street lamp integrates solar panel, LED light source, lithium battery, charge and discharge controller, infrared sensor and die-cast aluminum lamp shell as a whole, combining photoelectric conversion, constant current control, MPPT controller, infrared human sensing, mobile phone Bluetooth APP intelligent control and other practical control technologies. The overall structure is simple and elegant, easy to install and maintain, wide range of application. Specification| Model NO. | LL-ASSG-30W-01 | |
| LED | Chipset | SMD3030 |
| Chipset Q'ty | 96 PCS | |
| Light Efficiency | 130-150LM/W±10LM | |
| Lumen | 3900-4500LM | |
| Color Temperature | 2800K-6500K | |
| CRI | >70 | |
| LED Lifespan | 50000H | |
| Electrical characteristic | Rated Power | 30W |
| Solar Panel Power | 20W/mono | |
| Lithium Battery | 10.4AH/7.4V | |
| Charge Time | 6-8 H | |
| Discharging Time | > 36H | |
| Working Temperature | -25℃~+65℃ | |
| Switch Threshold | 15LUX | |
| Max sensing Distance | ≦12M | |

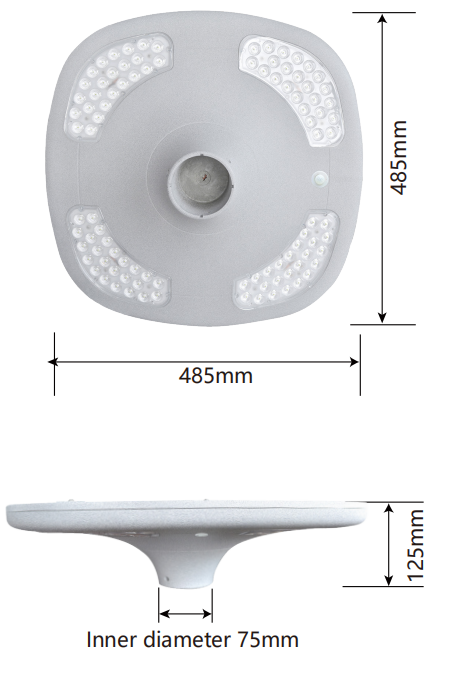

| Mechanical Specification | Light body size | 485*485*125mm |
| Net Weight | 4.8 kg | |
| Mounting Height | 3-5 M | |
| Pole Installation Distance | 9-15m for one-side road lighting; 20-30m for both-side road lighting | |
| Packing Information | Q'ty/carton | 1 set / carton |
| Carton Size | 520*520*160mm | |
| Gross Weight | 6.1 kg | |
Unit: mm

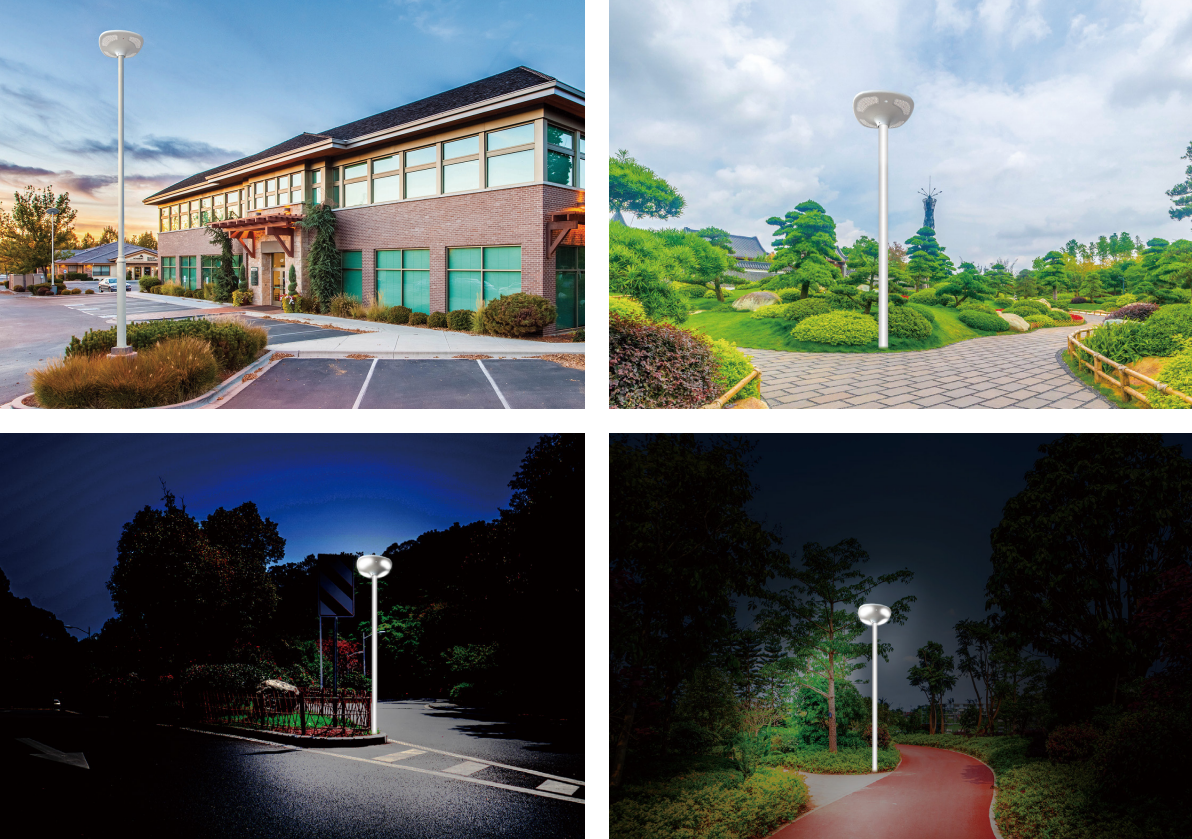

Application: All in one solar led street light is used for Courtyard, Garden, Park, Street, Roadway, pathway, Parking Lot, Private road, Sidewalk, Public square, plaza, Campus, Farm & Ranch, Perimeter Security, Wildlife area, Remote Area, Military Base, and so on.
