50W Semi integrated Solar LED Street Light

Products Details

Features:

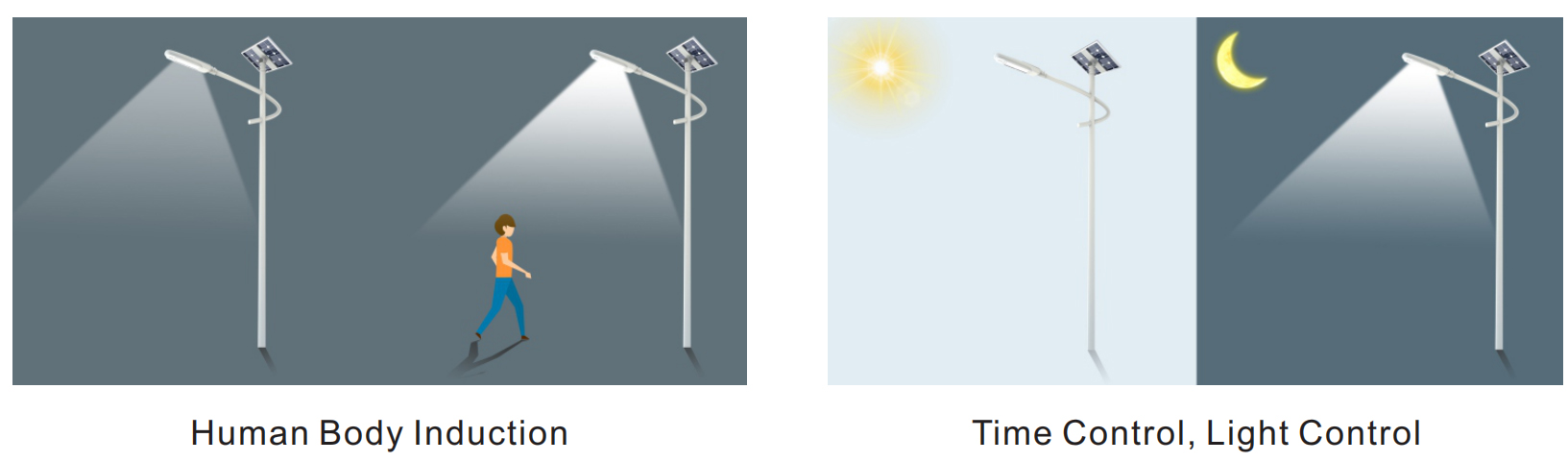

  1. Based on the classic semi-integrated solar street light, this new product is a creative lighting fixture with features of elegant exterior design, die-casting aluminum housing and customized solar panel and functions of time control, light control, human infrared sensing and Bluetooth APP control.
  2. The direction adjustable solar panel maximizes the solar cell charging efficiency.
  3. It can be matched with AC adaptor and used as a LED street light supplied by commercial electricity with its special controller.
  4. With 5050 LED, higher brightness and less energy consumption.

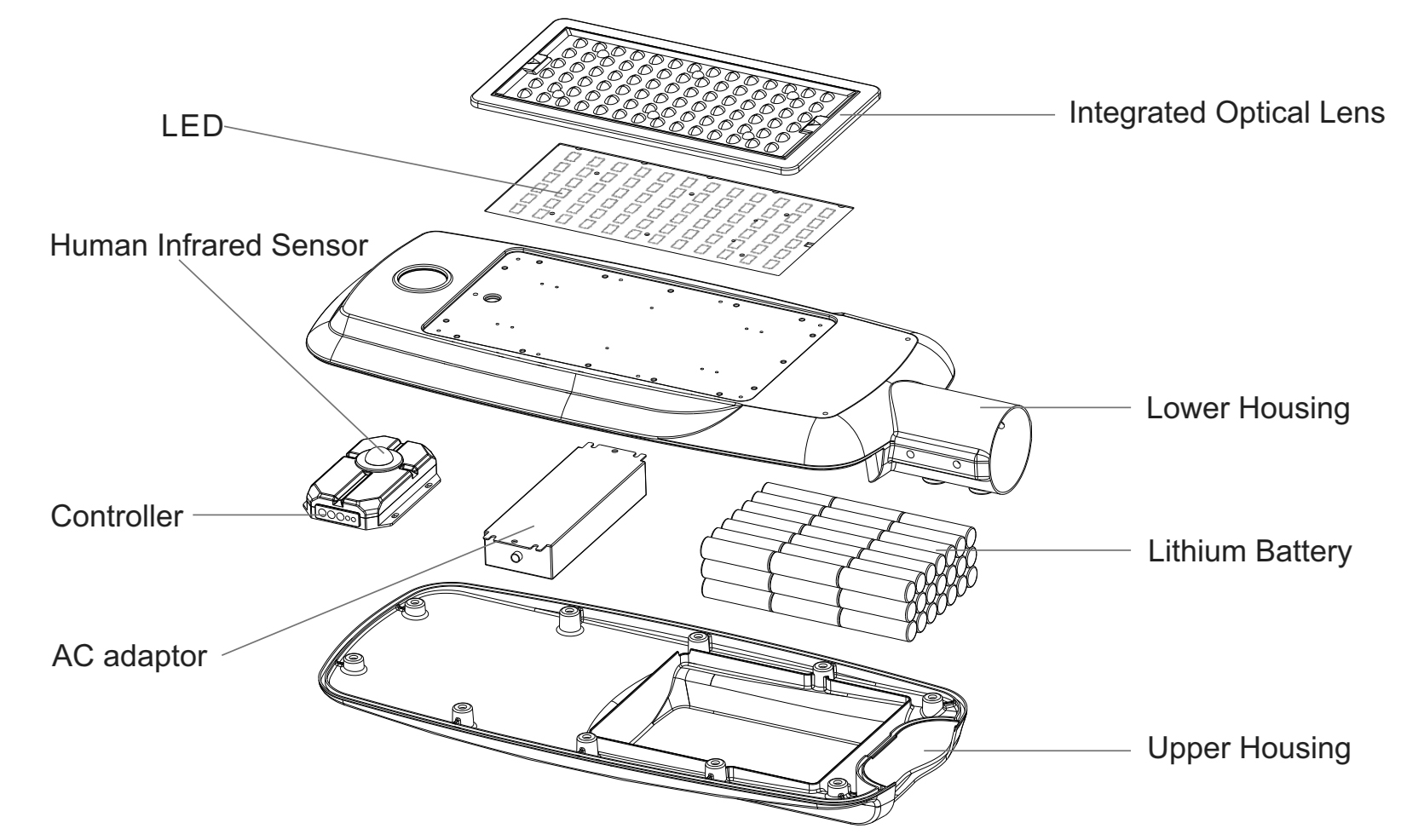

Product structure The solar light with streamlined design is manufactured with an exclusive private mold and made of aluminum die casting housing. Structure Function characteristic Function 1 Function 2 Main components ComponentsComponents 3 Specification
Model NO.  LL-SMSL3-50W
LED Chipset  5050 LED
Chipset Q'ty  60PCS
Light Efficiency  130LM/W±10LM
Lumen  5000-6000LM
Color Temperature  2800K-6500K
CRI >70
LED Lifespan 50000H
Electrical characteristic Rated Power 50W
Solar Panel Power 18V/70W
Lithium Battery 12V 31AH
Charge Time 7 Hours with summer's sunshine
Discharging Time 3-10 rainy days, 12hours per night,Or you can set your lighting time via Mobile APP.
Working Temparature  -30℃~+60℃
Switch Threshold 15LUX
Max sensing Distance ≦12M
Mechanical Specification Product Size 633*250*90MM
Solar Panel Size 670*647*30MM
Net Weight 12.7KG
Mounting Height 6-8M
Pole Installation Distance 15-21m for one-side road lighting; 30-40m for both-side road lighting.
Packing Information Q'ty/carton 1PCS/CTN
Carton Size(Solar panel) 705*725*220MM
Gross Weight 15.5KG

Size

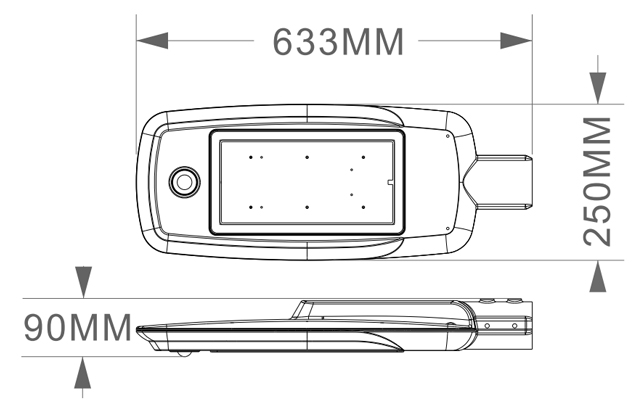

SMSL3 Size

Unit: mm

Application: Semi-integrated solar led street light is used for Courtyard, Garden, Park, Street, Roadway, pathway, Parking Lot, Private road, Sidewalk, Public square, plaza, Campus, Farm & Ranch, Perimeter Security, Wildlife area, Remote Area, Military Base, and so on. application
