Specification:
| Item No. | FPC Width | CCT | Power/M (±10%) | LEDs/M | Voltage | LM/M (±10%) | CRI | SDCM | Beam angle | Step length |
| LL-FCOB8H30MP8N-320J24 | 8mm | WW/NW/CW | 8W | 320led/m | DC24V | 95lm/w | 90 | <4 | 180° | 50mm |
| LL-FCOB10H30MP8N-320J24 | 10mm | WW/NW/CW | 8W | 320led/m | DC24V | 95lm/w | 90 | <4 | 180° | 50mm |
| LL-FCOB8H30MP10N-420J24 | 8mm | WW/NW/CW | 10W | 420led/m | DC24V | 85lm/w | 90 | <4 | 180° | 50mm |
| LL-FCOB10H30MP10N-420J24 | 10mm | WW/NW/CW | 10W | 420led/m | DC24V | 85lm/w | 90 | <4 | 180° | 50mm |
| LL-FCOB8H30MP10N-480J24 | 8mm | WW/NW/CW | 10W | 480led/m | DC24V | 95lm/w | 90 | <4 | 180° | 50mm |
| LL-FCOB10H30MP10N-480J24 | 10mm | WW/NW/CW | 10W | 480led/m | DC24V | 95lm/w | 90 | <4 | 180° | 50mm |
| LL-FCOB8H30MP8N-360J12 | 8mm | WW/NW/CW | 8W | 360led/m | DC12V | 80lm/w | 90 | <4 | 180° | 25mm |
| LL-FCOB10H30MP10N-360J12 | 10mm | WW/NW/CW | 10W | 360led/m | DC12V | 80lm/w | 90 | <4 | 180° | 25mm |

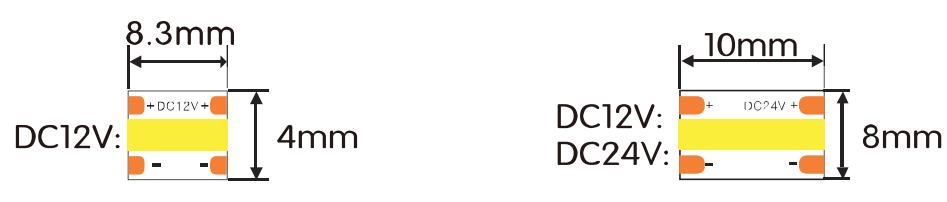

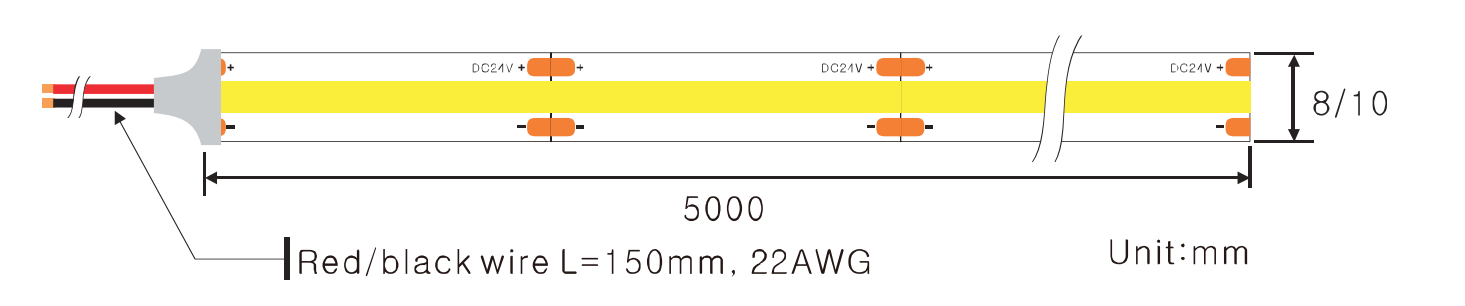

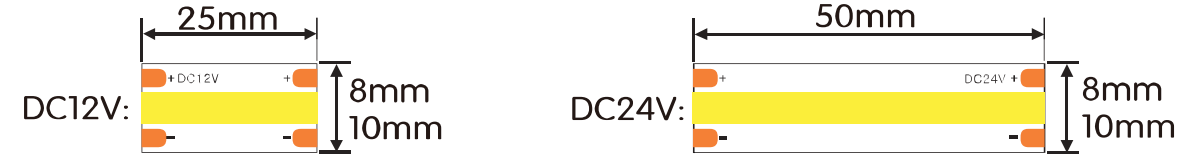

Size:
Application:
Flexible COB LED Strip Light is widely used in home and car decorations, sign, advertising signboard, public house, jewelry counter, place of entertainment, etc.
