- The die-cast aluminum housing after anti-corrosion treatment is heavy duty and reliable.
- Polyester powder-coated finish, rush and corrosion-proof.
- Anti-glare and UV resistant PC.
- Using small driver current, LED package will have a longer lifespan L(70).
- Use a unique heat sink design to shorten the thermal passway.
| Model | LL-DD50WB-01 | LL-DD70WB-01 | LL-DD90WB-01 | LL-DD100WB-01 | LL-DD120WB-01 | LL-DD150WB-01 |
| Power | 50W | 70W | 90W | 100W | 120W | 150W |
| Luminous Flux | 6500lm | 9100lm | 11700lm | 13000lm | 15600lm | 19500lm |
| Luminous Efficacy | 130 lm/w | 130 lm/w | 130 lm/w | 130 lm/w | 130 lm/w | 130 lm/w |
| Input Voltage | 100-277VAC | |||||
| Frequency | 50/60Hz | |||||
| Power Factor | ≥0.9 | |||||
| Material | ADC12+PC | |||||
| Chipset | SMD2835 | |||||
| Color Temperature | 5000K | |||||
| CRI | >70 | |||||
| Beam Angle | 120° | |||||
| IP Level | IP65 | |||||
| Operating Temperature | -40~40℃ | |||||
| Storage Temperature | -40~90℃ | |||||
| Lifespan | 50,000H | |||||
| Warranty | 5years | |||||
| Product Size | 236*176*100mm | |||||
| Product Weight | 1.78 kg | |||||
| Gross Weight | 2.2 kg | |||||
| Box Size | 250*185*110mm | |||||
| Carton Size | 400*270*180mm | |||||
| Carton Gross Weight | 9.4 kg | |||||
| Q'ty/Carton | 4 pcs | |||||

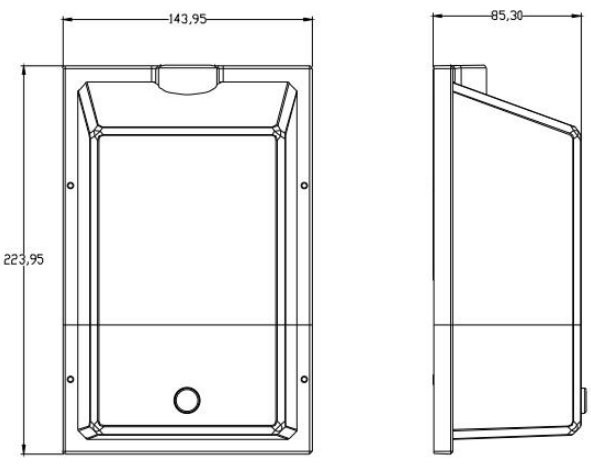

Unit: mm
Application:
The Dusk to dawn light is widely used on walls of Super Market, Hotel, Tavern, Night Club, Disco Hall, Karaoke Room, Coffee House, Bank, Meeting Room, Exhibition Hall, Exhibition Wardrobe, Show Window, Living House etc.
